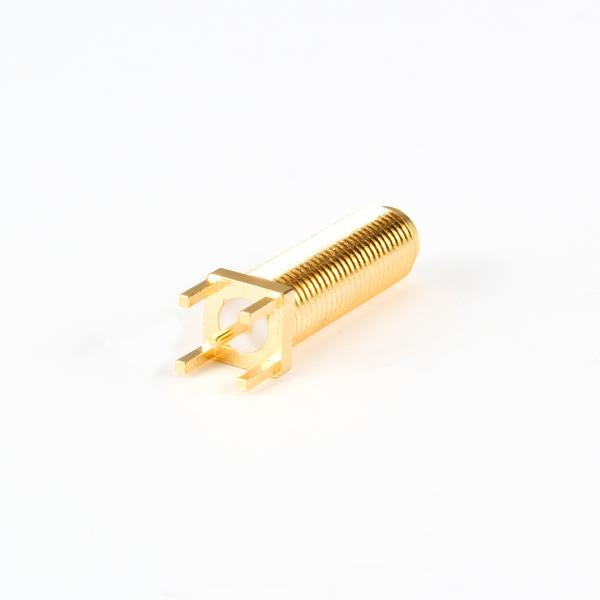

Brass Gold Plating Female PCB Mount RF Connector SMA-KE-125-20.5-2

Product Categories

Shenzhen Anzewei Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OTW

Model Number : SMA-KE-125-20.5-2

Place of Origin : China

MOQ : 50pcs

Price : 0.05-0.39

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Country of Origin : CHINA

Brand : OTW

Description : Female PCB mount Connector

Material : Brass

Plating : GOLD

VSWR : 1.10:1

Impedance : 50Ω

Contact Now

Brass / Gold Plating Female PCB Mount Connector For RF Signal Connection

Product descriptions from the supplier

Application:

● PCB Mounting Wifi Antenna Connector

● RF signal connection

Features:

● Enhanced electrical conductivity ● Oxidation resistance,

corrosion resistance,

environmental protection and safety

● Brass/Gold plating ● Stable performance, strong durability ● High reliability, long life

Product performance
Model	SMA-KE-125-20.5-2
Vibration	100m/s2 (10~500Hz)
Impedance	50 OHM
Frequency Range	DC – 11GHz
Working Voltage	2700V max
Break-down Voltage	4000V rms @ sea level
Contact resistance	≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact
Average power	3KW max
Insulation resistance	≥10000M OHM
VSWR	≤ 1.10
Durability (mating)	≥500 (cycles)
Temperature range	-40~+85°C
Material	Brass/Gold plating

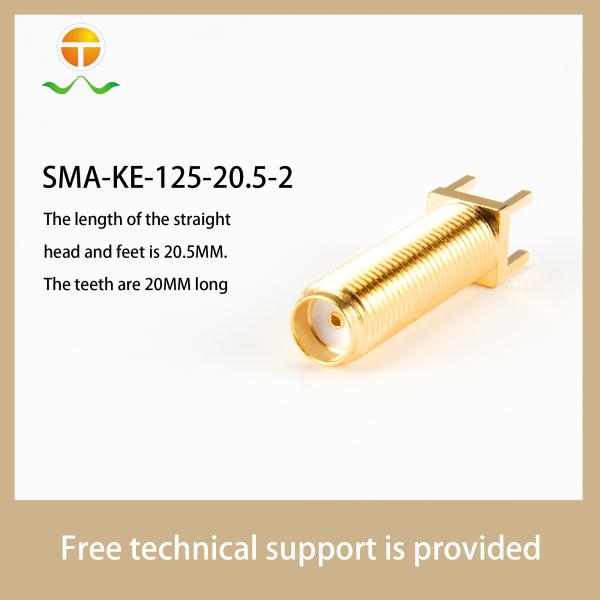

Size	The length of the straight head and feet is 20.5MM Teeth length 20MM 1.7MM spacing

Product Tags:

Gold Plating PCB Mount Connector
